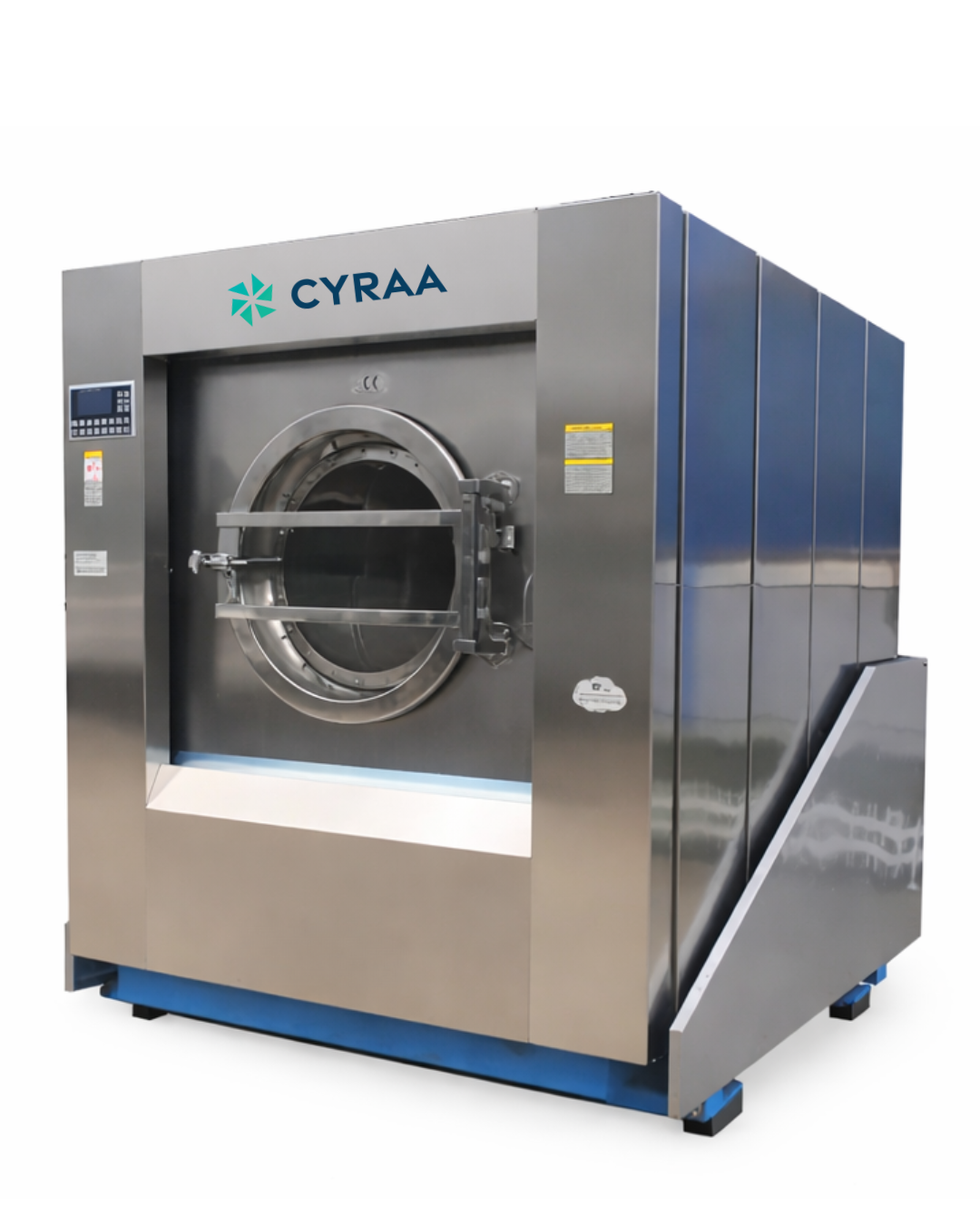

Fully Automatic Tilting Washer-Extractor

CWT Series

Fully Automatic Tilting Washer-Extractor

A fully automatic tilting washer-extractor combining washing and extraction in a single free-standing unit. Engineered for commercial laundries, hotels, hospitals, and industrial facilities requiring efficient processing and automatic unloading. The free-standing construction requires no special foundation, and the built-in tilting mechanism provides up to 25° tilt for automatic unloading — minimizing manual effort and improving operator safety.

Capacity: 15 – 100 kg Voltage: 440 V Max Extraction: 874 rpm Steam: 0.3 – 0.5 MPa

Request a Quote

Download Brochure

KEY FEATURES

Built for Demanding Environments

Integrated Washing & Extraction

Combines washing and extraction in a single unit, eliminating separate equipment. Improves process efficiency, reduces handling time, and optimizes space utilization.

Front Loading & Unloading Design

Front-loading configuration allows easy operator access and smooth material handling. Enhances ergonomics and supports efficient workflow in commercial and industrial operations.

Automatic Tilting Mechanism

Built-in tilting function provides up to 25° tilt for automatic unloading. Minimizes manual effort, improves operator safety, and speeds up the unloading process significantly.

Advanced Suspension System

Hydraulic dampers and compression springs absorb vibrations effectively. Ensures stable operation, reduces noise, and extends machine service life under heavy daily use.

TECHNICAL SPECIFICATIONS

CWE Series — Model Overview

Parameter	Unit	CTW-120F	CTW-130F	CTW-150F
Washing Capacity	kg	120	130	150
Drum Dimensions	mm	Φ1300×900	Φ1300×1030	Φ1470×890
Drum Volume	L	1190	1360	1510
Voltage	V	440	440	440
Motor Power	kW	11	15	18.5
Inverter Power	kW	15	18.5	22
Washing Speed	rpm	42	42	42
Extracting Speed	rpm	330/510/540/643	330/510/540/643	310/481/508/604
Steam Pressure	MPa	0.3–0.6	0.3–0.6	0.3–0.6
Steam Consumption	kg/h	60	65	75
Electric Heating Power	kW	48	48	72
Dimensions (L×W×H)	mm	1900×2560×2100	1900×2700×2100	2100×2600×2300
Gross Weight	kg	5000	5800	6500
