Products / Flatwork Ironer

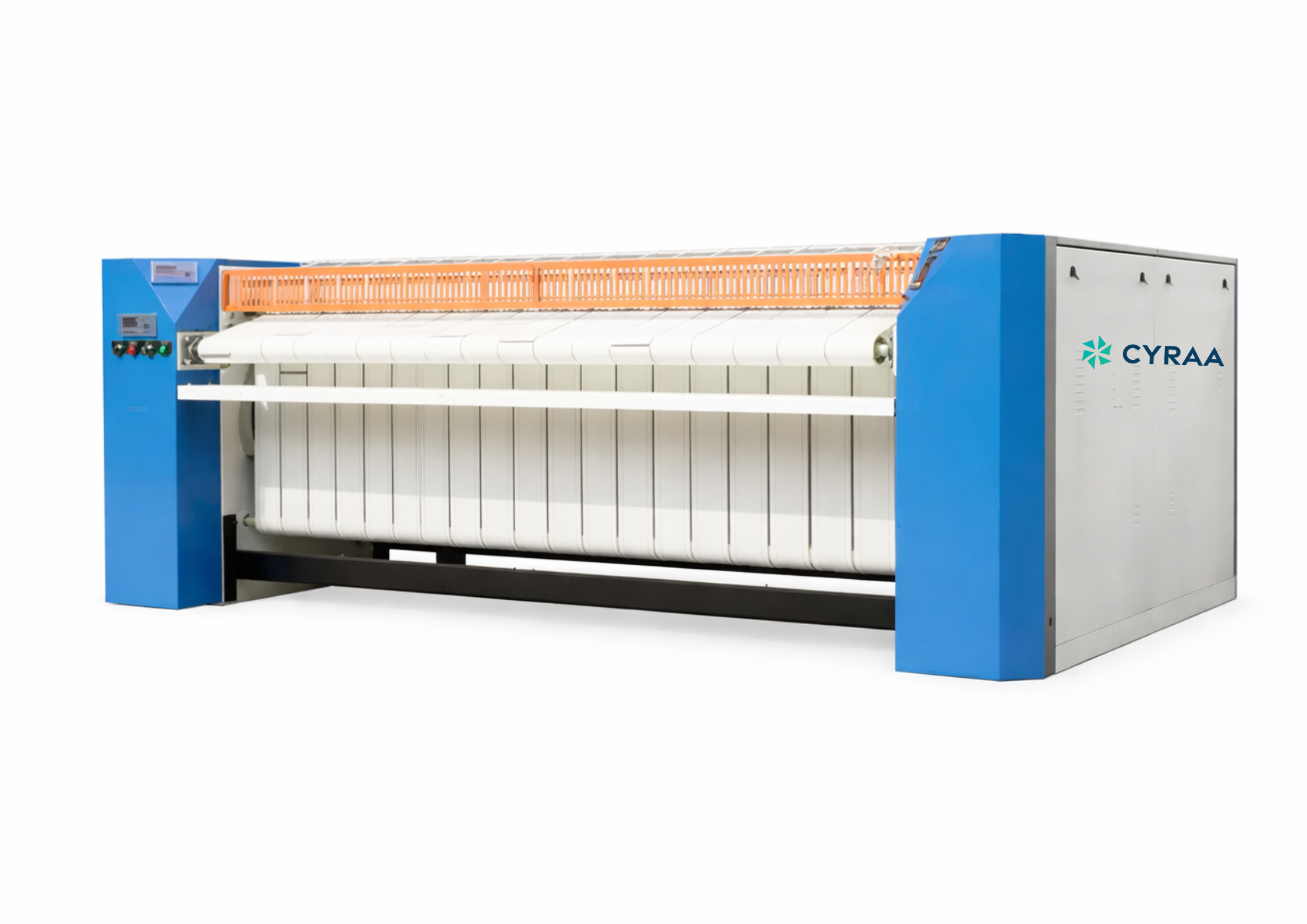

Electric / Steam Flatwork Ironer

CFI Series

Electric / Steam Flatwork Ironer

A precision flatwork ironer available in 1, 2, and 3 roller configurations for high-volume ironing of bed sheets, quilt covers, and similar linen. Engineered for commercial laundries, hotels, and hospitals requiring consistent wrinkle-free finishing with adjustable speed, temperature control, and automatic thickness adaptation.

Capacity: 15 – 100 kg Voltage: 440 V Max Extraction: 874 rpm Steam: 0.3 – 0.5 MPa

Request a Quote

Download Brochure

KEY FEATURES

Built for Demanding Environments

Flatwork Ironing Capability

Combines washing and extraction in a single machine. Improves operational efficiency and reduces handling time throughout the cycle.

Adjustable Speed & Temperature

Ergonomic front-loading configuration allows easy loading and unloading of materials. Saves floor space and supports smooth workflow in busy environments.

Thermostatic Heating Control

Designed as a free-standing unit requiring no special foundation. Simplifies installation, reduces civil work costs, and allows flexible placement within the facility.

Auto-Adapting Thickness Control

Hydraulic dampers combined with compression springs absorb vibrations, ensure stable operation, and increase machine longevity while reducing structural stress.

TECHNICAL SPECIFICATIONS

CWE Series — Model Overview

Parameter	Unit	CFI1-8022	CFI1-8025	CFI1-8028	CFI1-8030	CFI1-8033
Iron Roller Length	mm	2000	2500	2800	3000	3300
Iron Roller Diameter	mm	800	800	800	800	800
Iron Roller Number	pcs	1	1	1	1	1
Ironing Speed	m/min	0–12	0–12	0–12	0–12	0–12
Voltage	V	110 / 220 / 240 / 380 / 415 / 440
Motor Power	kW	1.5	1.5	1.5	1.5	1.5
Inverter Power	kW	1.5	1.5	1.5	1.5	1.5
Steam Pressure	MPa	0.3–0.6	0.3–0.6	0.3–0.6	0.3–0.6	0.3–0.6
Steam Consumption	kg/h	70	80	90	100	110
Electric Heating Power	kW	27	30	33	36	39
Dimensions (L×W×H)	mm	3200×1250×1290	3500×1250×1290	3800×1250×1290	4000×1250×1290	4300×1280×1300
Gross Weight	kg	920	950	1040	1100	1190

Looking for the right model?

Our team can help you select the right unit for your facility.

Request a Quote
